🌟 Overview

The BenRover Dashboard is a sophisticated graphical user interface designed to monitor our Mars rover. This dashboard provides real-time data visualization and system status updates, leveraging Firebase for data storage and retrieval.

​
🎥 Demo

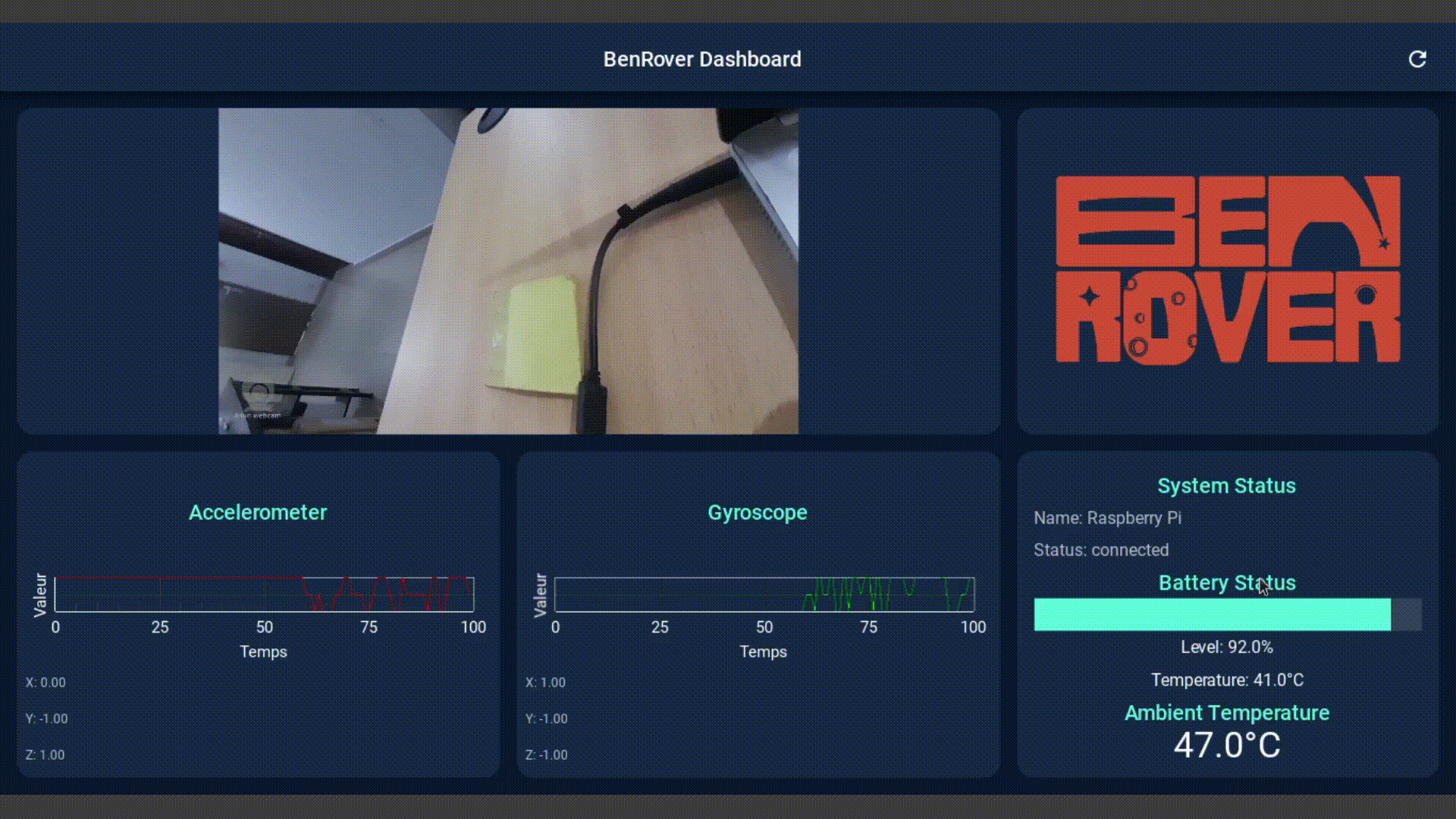

Here’s a quick demonstration of the BenRover Dashboard interface: BenRover Dashboard Demo
This GIF showcases the main features of the BenRover Dashboard, including:
  • Real-time sensor data display (accelerometer and gyroscope)
  • Live video feed from the rover’s camera
  • System status updates and battery monitoring
  • Interactive graphs for data visualization

​
🛠️ Features

📊 Real-time Data Display

Showcases live data from the rover’s sensors

📹 Video Feed

Displays a live video feed from the rover’s camera

🚦 System Status

Provides up-to-date information on the rover’s operational status

🔋 Battery Monitoring

Shows the current battery level and temperature

🌡️ Ambient Temperature

Displays the surrounding temperature as detected by the rover

📈 Interactive Graphs

Visualizes accelerometer and gyroscope data in real-time

📱 Responsive Design

Utilizes KivyMD for a modern, responsive user interface

​
📋 Prerequisites

  • Python 3.7+
  • Kivy
  • KivyMD
  • Firebase Admin SDK
  • OpenCV
  • Other dependencies listed in requirements.txt

​
💻 Installation

  1. Clone the repository:
git clone https://github.com/BenRover-24/rosws.git
cd Rover_dashboard
  1. Create a virtual environment (optional but recommended):
python -m venv venv
source venv/bin/activate  # On Windows use `venv\Scripts\activate`
  1. Install the required dependencies:
pip install -r requirements.txt
  1. Set up Firebase:
    • Create a Firebase project and obtain the credentials.json file.
    • Place the credentials.json file in the project root directory.

​
🚀 Usage

To run the BenRover Dashboard:
python benrover_dashboard.py

​
⚙️ Configuration

  • Modify the credentials.json file with your Firebase project credentials.
  • Adjust the video feed URL in the update_video method of the RoverDashboard class to match your rover’s camera stream address.

​
📁 File Structure

benrover-dashboard/
├── benrover_dashboard.py
├── credentials.json
├── requirements.txt
└── img/
    ├── logo.png
    └── placeholder.png
  • benrover_dashboard.py: Main application file containing the dashboard logic and UI.
  • credentials.json: Firebase credentials file (keep this secure and do not share publicly).
  • requirements.txt: List of Python dependencies.
  • img/: Directory containing images used in the dashboard.

​
🤝 Contributing

Contributions to the BenRover Dashboard project are welcome. Please follow these steps:
  1. 🍴 Fork the repository.
  2. 🌿 Create a new branch for your feature.
  3. ✏️ Commit your changes.
  4. 🚀 Push to the branch.
  5. 🔍 Create a new Pull Request.

​
🙏 Acknowledgements

  • Thanks to the Kivy and KivyMD communities for their excellent UI frameworks.
  • Gratitude to the Firebase team for their real-time database solution.
  • Special thanks to all contributors and testers of the BenRover project.
🌟 Developed with passion by the BenRover Team 🇧🇯
